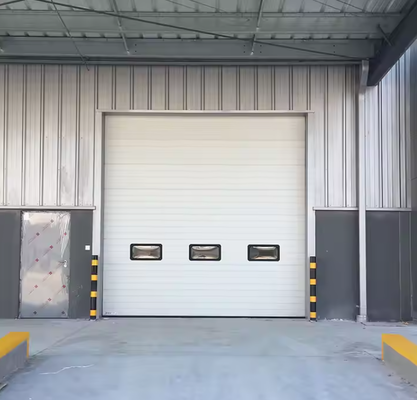

High Speed 0.4m/s Insulated Sectional Overhead Door 42mm PU Sandwich Panel R-Value 13.73 Energy Efficient
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | DESEO |
| گواهی: | CE/ISO9001:2008 |
| شماره مدل: | SD6100 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 واحد |
|---|---|
| قیمت: | USD 850-1200/UNIT |
| جزئیات بسته بندی: | بسته تخته سه لا با فیلم محافظ |
| زمان تحویل: | 10-25 روز |
| شرایط پرداخت: | T/T، L/C |
| قابلیت ارائه: | 200 واحد در ماه |
|
اطلاعات تکمیلی |
|||
| مواد: | فولاد گالوانیزه، آلیاژ آلومینیوم | ضخامت پانل: | 42 میلی متر |
|---|---|---|---|
| عرض پنل: | 500 میلی متر | مواد اصلی: | فوم پلی اورتان 48 کیلوگرم بر متر مکعب |
| R-Value: | 13.73 | سرعت باز: | 0.4m/s |
| عملیات: | برقی، ریموت، دستی | حفظ حرارت: | 4.5W/mh |
| مقاومت در برابر باد: | مقیاس بوفور 11، 28 متر بر ثانیه | عایق صدا: | 24 دسی بل |
| عقب ماندگی: | کلاس A | عمر سرویس: | 10 سال |
| حداکثر ابعاد: | 12 متر در 8 متر | درمان سطحی: | پوشش پودری 30um |
| برنامه: | صنعتی، انباری، گاراژی، تجاری | ||
| برجسته کردن: | High Speed 0.4m/s Insulated Sectional Door,42mm PU Sandwich Panel Overhead Door,Energy Efficient R-Value 13.73 Sectional Door |
||
توضیحات محصول
Energy Efficient High Speed Insulated Sectional Overhead Door
The SD6100 insulated sectional overhead door combines rapid 0.4m/s opening speed with industry-leading thermal performance. Designed for high-traffic industrial and commercial environments where both speed and energy efficiency are critical.
Key Features
- Industry-Leading R-Value 13.73: 42mm polyurethane foam sandwich panels deliver exceptional thermal insulation, reducing HVAC costs and maintaining stable indoor temperatures year-round.
- 0.4m/s High Speed Operation: Minimizes air exchange and heat loss during frequent open/close cycles, ideal for busy logistics centers and loading docks.
- 48kg/m3 High Density PU Core: Superior structural rigidity with excellent noise dampening at 24 dB sound insulation.
- Class A Fire Retardation: Meets stringent fire safety standards for industrial facilities.
- Beaufort 11 Wind Resistance: Engineered to withstand wind speeds up to 28m/s for exposed installations.
Technical Specifications
| Material | Galvanized Steel, Aluminum Alloy, Color Coating Plate |
| Panel Thickness | 42mm |
| Panel Width | 500mm |
| Core Density | 48kg/m3 Polyurethane Foam |
| R-Value | 13.73 |
| Opening Speed | 0.2-0.4m/s |
| Guide Rail Thickness | 2mm Galvanized Steel |
| Surface Treatment | Powder Coating 30um |
| Heat Preservation | 4.5W/m.h |
| Sealing | EPDM Rubber All-Round Sealing |
| Max Dimension | 12m x 8m |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Service Life | 10 years / 100,000 cycles |
| Emergency Operation | Manual Hoist Chain |
Safety Systems
- Finger-protection (pinch-resistant) panel joint design
- Airbag safety edge for obstacle detection
- Door anti-fall device
- Wire rope anti-break protection
- Torsion spring balance system with spring brake device
Applications
Ideal for logistics warehouses, distribution centers, manufacturing plants, automotive workshops, and commercial garages where high-traffic access and thermal efficiency are priorities.
